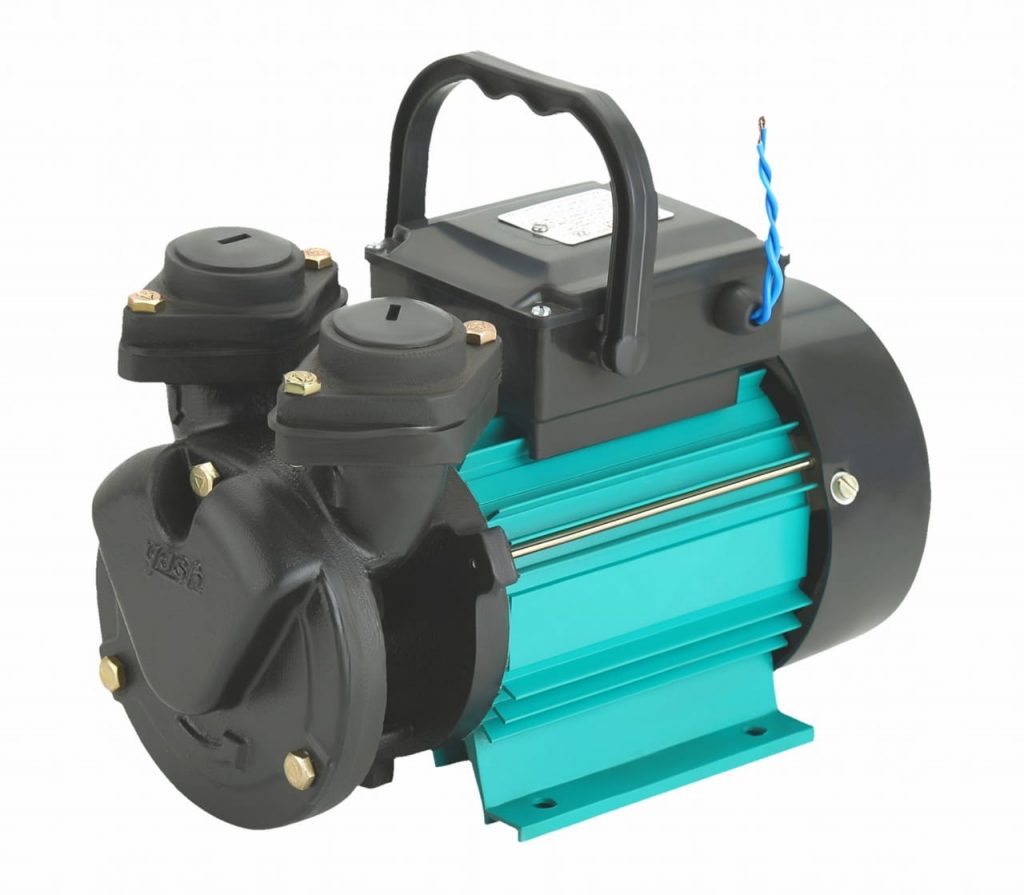

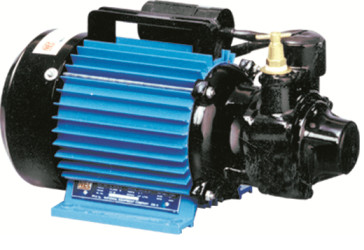

Domestic Self Priming Monoblock Pumps
Little Master Monoblock Pumps
Little Master High Flow Monoblock Pumps
Self Priming Parallel Head Monoblock Pumps
High Speed Self Priming Stage Monoblock Pumps
Product Descriptions
“NEC” Domestic Monoblock Pumps are rugged in construction and efficient. They are manufactured with stringent quality control at all stages to provide higher efficiency and reliability.
Applications
- Water lifting for bunglows and villas.
- Gardening and lawn sprinklers.
- Car washing.
- Pressure boosting.
- Water circulation.
Features
- Imported motor protector fitted.
- High self priming suction.
- Wide voltage design 180V-240V.
- Permanent Split capacitor (CSR).
- Double shielded bearings (ZZ).
- Non corrosive brass impeller.
- High quality aluminium extruded body.
Material Of Constructions
- Pump Body : Fe 200 Cast Iron
- Motor Body : Extruded Aluminium / Aluminium Die cast (select models)
- Impeller : Forged Brass
- Shaft : SS 410 / EN 8
- Motor : Single phase 230V – 50 Hz CSR, TEFC motor with Thermal Overload Protection
- Insulation : Class B
- Bearing : 6202 ZZ Nisiki
- Stamping : CRCA – LC Steel
- Winding : Enamelled copper wire winding
Range of Performance
- Flow Rate : Upto 3000 LPH
- Head Range : 6m to 40m
Limits of Use
- Manometric Suction lift up to : 6m (4m recommended)
- Medium : Clear Fresh Water only

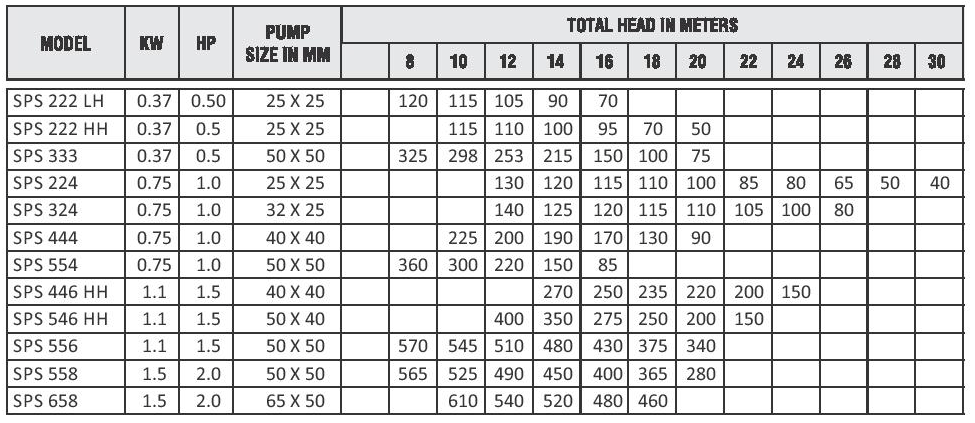

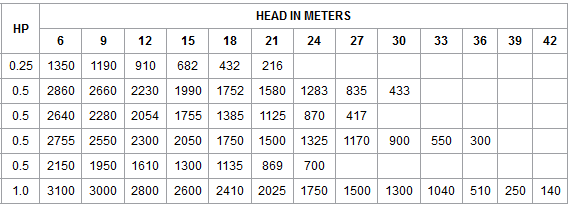

Performance Chart
Working Principle
The working principle of the Monobloc pumps is avoiding the transmission losses up to the 3% within the coupling driven sets and 7% within belt driven sets. There is no loss of energy while transmitting energy from the motor to shaft. Generally, installed close to the reservoir otherwise well.
Monoblock Pumps can be defined as the main moving element of the pump namely the motor as well as the pump that is assembled jointly within the similar unit. This is one kind of mechanical device where a general shaft includes the revolving parts. The pump as well as motor are connected together without using any coupling device in similar housing among the two shafts. As the name suggests mono means solo, whereas the Monoblock pump means a pump unit which is inflexibly coupled to prime mover like a motor.
Mini Monoblock Pumps
Rx60 Monoblock Pumps
Rx80 Monoblock Pumps

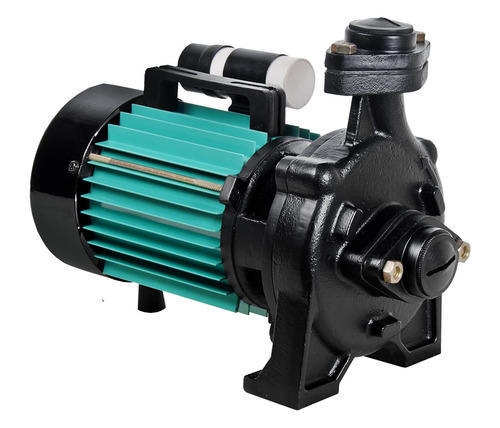

Domestic High Head Monoblock Pumps
Domestic High Discharge Monoblock Pumps
Domestic High Head High Discharge Monoblock Pumps
Product Descriptons
“NEC” Domestic Monoblock Pumps Pumps are rugged in construction and efficient. They are manufactured with stringent quality control at all stages to provide higher efficiency and reliability.
Applications
- Water lifting for bunglows and villas.
- Gardening and lawn sprinklers.
- Car washing.
- Pressure boosting.
- Water circulation.
Features
- Imported motor protector fitted.
- High self priming suction.
- Wide voltage design 180V-240V.
- Permanent Split capacitor (CSR).
- Double shielded bearings (ZZ).
- Non corrosive brass impeller.
- High quality aluminium extruded body.
Material of constructions
- Pump Body : Fe 200 Cast Iron
- Motor Body : Extruded Aluminium / Aluminium Die cast (select models)
- Impeller : Forged Brass
- Shaft : SS 410 / EN 8
- Motor : Single phase 230V – 50 Hz CSR, TEFC motor with Thermal Overload Protection
- Insulation : Class B
- Bearing : 6202 ZZ Nisiki
- Stamping : CRCA – LC Steel
- Winding : Enamelled copper wire winding
Range of Performance
- Flow Rate : Upto 3000 LPH
- Head Range : 6m to 40m
Limits of use
- Manometric Suction lift up to : 6m (4m recommended)
- Medium : Clear Fresh Water only
Performance Chart

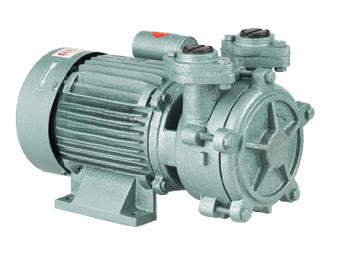

DMS80/2 Slow speed Self Priming Monoblock Pumps
DMS90/3 Slow speed Self Priming Monoblock Pumps
DMS100/3S Slow speed Self Priming Monoblock Pumps
Product Descriptions
“NEC” Domestic Monoblock Pumps are side channel centripetal pumps. They are convenient, rugged and reliable pumps for the household, they have proven their performance over many decades. This pump has got good self priming action even with air entrapped.
Applications
- All applications requiring Self priming action up to 8 meters
- Overhead storage water- tank filling
- Car washing
- Water supply to commercial establishments like Hotels, Lodges and Hospitals
- Gardening and small farm Irrigations
- Home Pressure Boosting Applications
- Filter point pumping
Features
- Rugged single phase TEFC motor with dynamically balanced rotor
- Suitable for 200 – 240 V, 50 Hz power supply
- Rigid and accurate cast iron castings
- Highly wear resistant bronze impeller
- Carbon Vs Ceramic mechanical seal
Material of Constructions
PARTCULARS | DETAILS |
Stator Frame | Cast Iron |
Bearings | Deep groove ball bearings |
Rotor shaft | Carbon Steel |
Shaft sleeve | Bronze |
Casing | Cast Iron |
Cover dome | Cast Iron |
Impeller | Bronze |
Sealing Arrangements | Carbon Vs Ceramic Mechanical Seal |
Range of performance
PARTICULARS | DETAILS |
Power Range | 0.5HP to 2.0 HP |
Voltage Range | 200V – 240V, 50Hz, AC Single phase |
Speed | 1420 RPM |
Motor Type | High torque Capacitor start motor for DMS80 High torque Capacitor start and Capacitor run motor |
Head | Maximum 50 M |
Discharge | Maximum 59 LPM |
Operating Pressure | Maximum 15 bar |
Limits of Use
- Manometric Suction lift up to : 6m (4m recommended)
- Medium : Clear Fresh Water only
Performance Chart

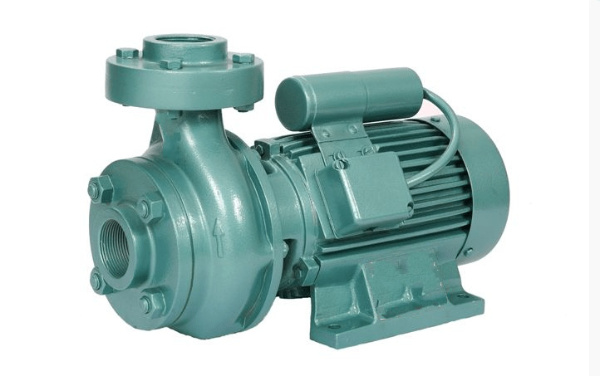

High Discharge Monoblock Pumps
KRM 18
Product Descriptions
“NEC” Single phase Centrifugal Monoblock Pumpsets are Convenient, rugged and efficient these monoblocks are ideal where the water requirement is fairly high.
Applications
- Overhead storage water- tank filling
- Water supply to commercial establishments like Hotels, Lodges and Hospitals
- Gardening and small farm irrigations
- Home Pressure boosting Applications
- Portable small – farm irrigation
Material of Constructions
PARTCULARS | DETAILS |
Stator Frame | Cast Iron |
Bearings | Deep groove ball bearings |
Rotor shaft | Stainless 410Steel |
Casing | Cast Iron |
Cover dome | Cast Iron |
Impeller | Cast iron , Nitriyel, Bronze (Optional) |
Sealing Arrangements | Carbon Vs Ceramic Mechanical Seal |
Electrical Winding | Copper |
Stamping | CRNO , M47 , LC Low carbon |
Rotor | Pressured Alu. Diecast , Copper (Option) |
Range of Performance
PARTICULARS | DETAILS |
Power Range | 0.5HP,1HP,1.5HP,2HP |
Voltage Range | 200V – 240V, 50Hz, AC Single phase |
Voltage Range | 400V – 440V, 50Hz, AC Three phase |
Speed | 2900 rpm |
Motor Type | Capacitor run motor TEFC type |
Head | Maximum 40 M |
Discharge | Maximum 200 LPM |
Operating Pressure | Maximum 10 bar |
Suction | Maximum 63mm |
Delivery | Maximum 63mm |
Limits of Use
- Manometric Suction lift up to : 6m (4m recommended)
- Medium : Clear Fresh Water only

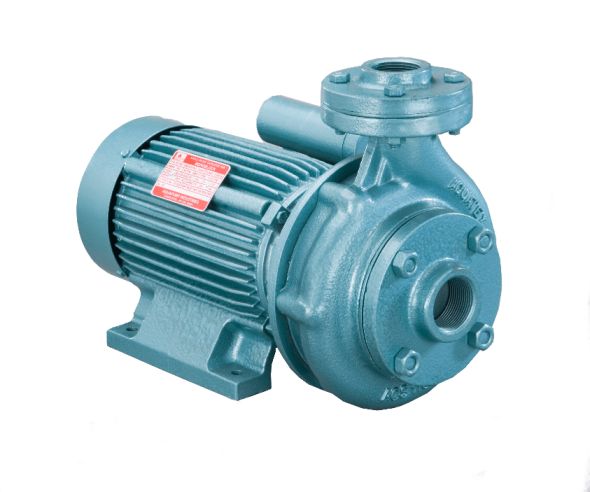

High Head Monoblock Pumps
KRM 30
Product Descriptions
“NEC” Single phase Centrifugal Monoblock Pumpsets are Convenient, rugged and efficient these monoblocks are ideal where the water requirement is fairly high.
Applications
- Overhead storage water- tank filling
- Water supply to commercial establishments like Hotels, Lodges and Hospitals
- Gardening and small farm irrigations
- Home Pressure boosting Applications
- Portable small – farm irrigation
Material Of Constructions
PARTCULARS | DETAILS |
Stator Frame | Cast Iron |
Bearings | Deep groove ball bearings |
Rotor shaft | Stainless 410Steel |
Casing | Cast Iron |
Cover dome | Cast Iron |
Impeller | Cast iron , Nitriyel, Bronze (Optional) |
Sealing Arrangements | Carbon Vs Ceramic Mechanical Seal |
Electrical Winding | Copper |
Stamping | CRNO , M47 , LC Low carbon |
Rotor | Pressured Alu. Diecast , Copper (Option) |
Range of Performance
PARTICULARS | DETAILS |
Power Range | 0.5HP,1HP,1.5HP,2HP |
Voltage Range | 200V – 240V, 50Hz, AC Single phase |
Voltage Range | 400V – 440V, 50Hz, AC Three phase |
Speed | 2900 rpm |
Motor Type | Capacitor run motor TEFC type |
Head | Maximum 40 M |
Discharge | Maximum 200 LPM |
Operating Pressure | Maximum 10 bar |
Suction | Maximum 63mm |
Delivery | Maximum 63mm |
Limits of use
- Manometric Suction lift up to : 6m (4m recommended)
- Medium : Clear Fresh Water only
Performance Chart
High Head High Discharge Monoblock Pumps
Product Descriptions
“NEC” Single phase Centrifugal Monoblock Pumpsets are Convenient, rugged and efficient these monoblocks are ideal where the water requirement is fairly high.
Applications
- Overhead storage water- tank filling
- Water supply to commercial establishments like Hotels, Lodges and Hospitals
- Gardening and small farm irrigations
- Home Pressure boosting Applications
- Portable small – farm irrigation
Material of Constructions
PARTCULARS | DETAILS |
Stator Frame | Cast Iron |
Bearings | Deep groove ball bearings |
Rotor shaft | Stainless 410Steel |
Casing | Cast Iron |
Cover dome | Cast Iron |
Impeller | Cast iron , Nitriyel, Bronze (Optional) |
Sealing Arrangements | Carbon Vs Ceramic Mechanical Seal |
Electrical Winding | Copper |
Stamping | CRNO , M47 , LC Low carbon |
Rotor | Pressured Alu. Diecast , Copper (Option) |
Range of Performance
PARTICULARS | DETAILS |
Power Range | 0.5HP,1HP,1.5HP,2HP |
Voltage Range | 200V – 240V, 50Hz, AC Single phase |
Voltage Range | 400V – 440V, 50Hz, AC Three phase |
Speed | 2900 rpm |
Motor Type | Capacitor run motor TEFC type |
Head | Maximum 40 M |
Discharge | Maximum 200 LPM |
Operating Pressure | Maximum 10 bar |
Suction | Maximum 63mm |
Delivery | Maximum 63mm |
Limits of Use
- Manometric Suction lift up to : 6m (4m recommended)
- Medium : Clear Fresh Water only
Performance Chart
High Head Monoblock Pumps
Product Descriptions
“NEC” Single phase Centrifugal Monoblock Pumpsets are Convenient, rugged and efficient these monoblocks are ideal where the water requirement is fairly high.
Applications
- Overhead storage water- tank filling
- Water supply to commercial establishments like Hotels, Lodges and Hospitals
- Gardening and small farm irrigations
- Home Pressure boosting Applications
- Portable small – farm irrigation
Material of Constructions
PARTCULARS | DETAILS |
Stator Frame | Cast Iron |
Bearings | Deep groove ball bearings |
Rotor shaft | Stainless 410Steel |
Casing | Cast Iron |
Cover dome | Cast Iron |
Impeller | Cast iron , Nitriyel, Bronze (Optional) |
Sealing Arrangements | Carbon Vs Ceramic Mechanical Seal |
Electrical Winding | Copper |
Stamping | CRNO , M47 , LC Low carbon |
Rotor | Pressured Alu. Diecast , Copper (Option) |
Range of Performance
PARTICULARS | DETAILS |
Power Range | 0.5HP,1HP,1.5HP,2HP |
Voltage Range | 200V – 240V, 50Hz, AC Single phase |
Voltage Range | 400V – 440V, 50Hz, AC Three phase |
Speed | 2900 rpm |
Motor Type | Capacitor run motor TEFC type |
Head | Maximum 40 M |
Discharge | Maximum 200 LPM |
Operating Pressure | Maximum 10 bar |
Suction | Maximum 63mm |
Delivery | Maximum 63mm |
Limits of Use
- Manometric Suction lift up to : 6m (4m recommended)
- Medium : Clear Fresh Water only
