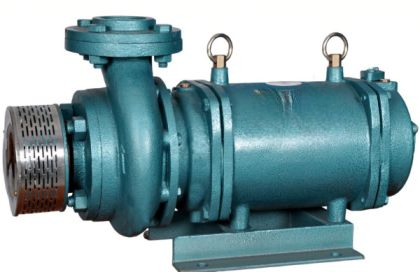

The Agriculture Openwell Submersible Pumps
Prime
Product Description
“NEC” OPENWELL SUBMERSIBLE PUMPSETS offer the convenience of not having to change the position of the pump with changing water levels in the well. They are rugged and efficient. They are reliable and are built to withstand tough operating conditions like low voltages, etc.
Applications
Deep or shallow openwell pumping with suction lift
River and canal lift irrigation pumping
Pressure boosting applications.
Public water supply to large residence areas and multi storied apartments
Water supply to commercial establishments like Hotels, Lodges and Hospitals etc
Dewatering of mines
Industrial water supply and transfer
Fountains
Features
Energy efficient motor
Low operating cost
Rigid cast iron motor frame, impeller and volute casing
Three phase water-filled submersible induction motor with easily rewindable stator
Material of Constructions
PARTICULARS
DETAILS
MOTOR
Water-filled Squirrel cage Induction motor
Stator Frame
Cast Iron (FG 200)
Thrust Bearing
Carbon with SS Thrust pad
Journal Bearings
Phosphor Bronze / Carbon
Diaphragm
Nitryle Rubber
Shaft
Stainless steel shaft with integral sleeve /Carbon Steel shaft with SS sleeve
Strainers
Stainless steel
Discharge casing
Cast Iron (FG 200)
Suction bracket
Cast Iron (FG 200)
Impeller
Cast Iron (FG 200) (Optional – Bronze)
Range of performance
PARTICULARS
DETAILS
Power Range
3.0 to 30.0 HP
Voltage Range
340V- 440V, AC Three phase , 50Hz
Speed (rpm)
2900
Motor Type
Water-filled and water cooled Induction motor
Head
Maximum 90 m
Discharge
Maximum 2640 lpm
Liquid temperature
Maximum 33ºC
Operating Pressure
20 bar
Sand content
maximum ,50 PPM

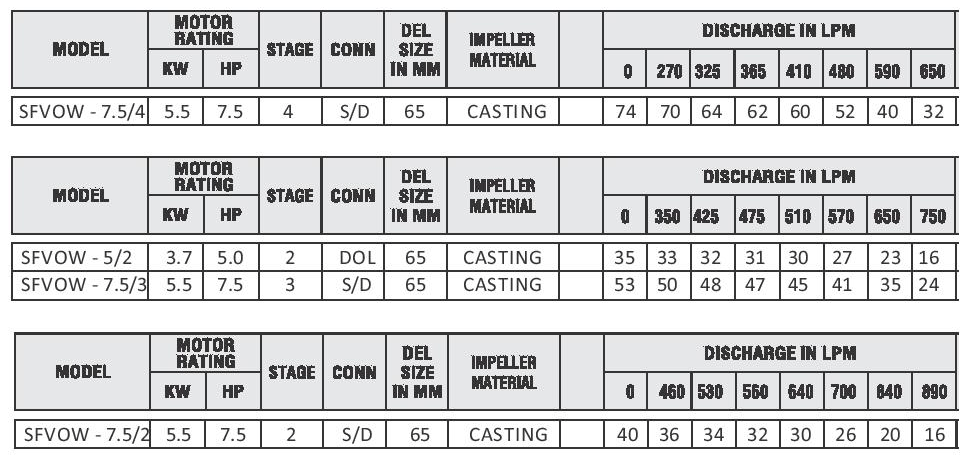

Performance Chart
The Agriculture Openwell Submersible Pumps
Eco
Product Description
“NEC” OPENWELL SUBMERSIBLE PUMPSETS offer the convenience of not having to change the position of the pump with changing water levels in the well. They are rugged and efficient. They are reliable and are built to withstand tough operating conditions like low voltages, etc.
Applications
Deep or shallow openwell pumping with suction lift
River and canal lift irrigation pumping
Pressure boosting applications.
Public water supply to large residence areas and multi storied apartments
Water supply to commercial establishments like Hotels, Lodges and Hospitals etc
Dewatering of mines
Industrial water supply and transfer
Fountains
Features
Energy efficient motor
Low operating cost
Rigid cast iron motor frame, impeller and volute casing
Three phase water-filled submersible induction motor with easily rewindable stator
Material of Constructions
PARTICULARS
DETAILS
MOTOR
Water-filled Squirrel cage Induction motor
Stator Frame
Cast Iron (FG 200)
Thrust Bearing
Carbon with SS Thrust pad
Journal Bearings
Phosphor Bronze / Carbon
Diaphragm
Nitryle Rubber
Shaft
Stainless steel shaft with integral sleeve /Carbon Steel shaft with SS sleeve
Strainers
Stainless steel
Discharge casing
Cast Iron (FG 200)
Suction bracket
Cast Iron (FG 200)
Impeller
Cast Iron (FG 200) (Optional – Bronze)
Range of performance
PARTICULARS
DETAILS
Power Range
3.0 to 30.0 HP
Voltage Range
340V- 440V, AC Three phase , 50Hz
Speed (rpm)
2900
Motor Type
Water-filled and water cooled Induction motor
Head
Maximum 90 m
Discharge
Maximum 2640 lpm
Liquid temperature
Maximum 33ºC
Operating Pressure
20 bar
Sand content
maximum ,50 PPM

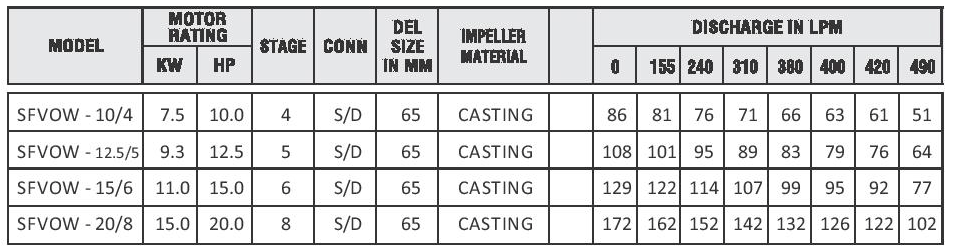

Performance Chart
The Agriculture Openwell Submersible Pumps

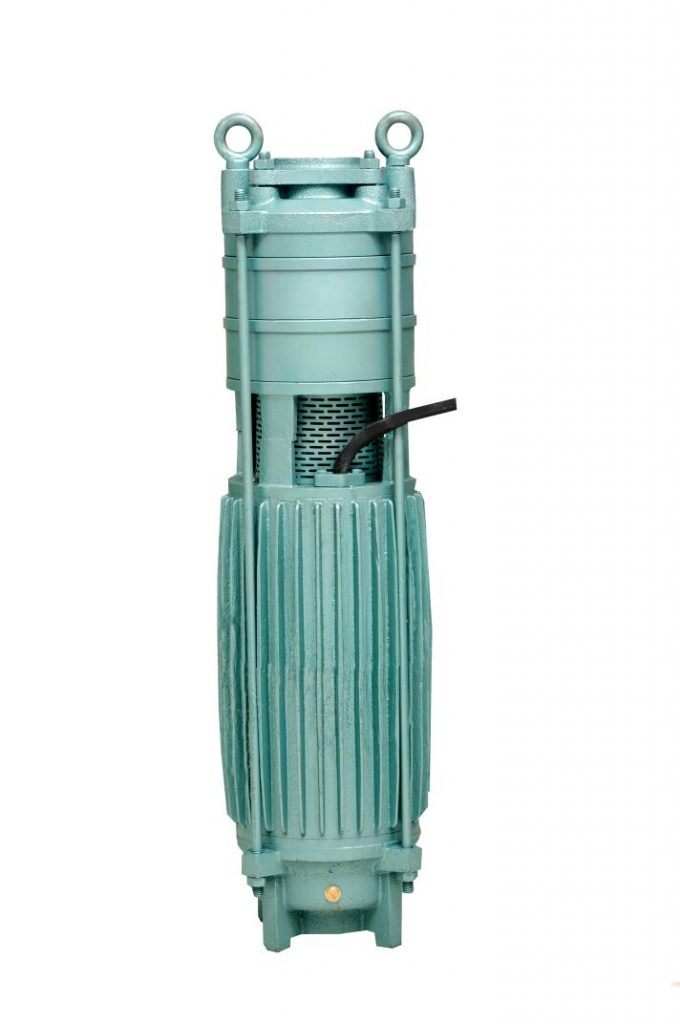

Vertical
Product Descriptions
“NEC” Vertical Open-well Submersible pumpsets are easy to install noise free, efficient and require minimum maintenance. A wide range of pumps are available to meet diverse operation requirements.
Applications
Deep or shallow openwell pumping
River and canal lift irrigation pumping.
Irrigation systems for Agriculture including Drip and Sprinkler systems.
Pressure boosting Applications
Public water supply to large residence areas and multi storied apartments
Water supply to commercial establishments like Hotels, Lodges and Hospitals
Dewatering of mines
Industrial water supply and transfer
Features
Energy Efficient motors
Low operating cost
Water lubricated motor with easily rewindable stator
Rigid cast iron motor frame, impeller and volute casing
Optional bronze impeller on request
Three phase water-filled submersible induction motor with easily rewindable stator
Material of Constructions
PARTICULARS
DETAILS
Stator Frame
Cast Iron
Thrust Bearing
Carbon with SS Thrust pad
Journal Bearings
Phosphor Bronze / Carbon / Stainless steel
Diaphragm
Nitrile Rubber
Shaft
Stainless steel shaft with integral sleeve
Strainers
Stainless steel
Discharge casing
Cast Iron
Inlet bracket
Cast Iron
Impeller
Cast Iron / Bronze
Range of Performance
PARTICULARS
DETAILS
Power Range
3.0 to 50.0 HP
Voltage Range
340V- 440V, 50Hz AC Three phase
Speed
2900RPM
Motor Type
Water-filled and water cooled Induction motor
Head
Maximum 128 M
Discharge
Maximum 3190 LPM
Liquid temperature
Maximum 33ºC
Operating Pressure
20 bar
Sand Content in Water
Maximum 50 PPM

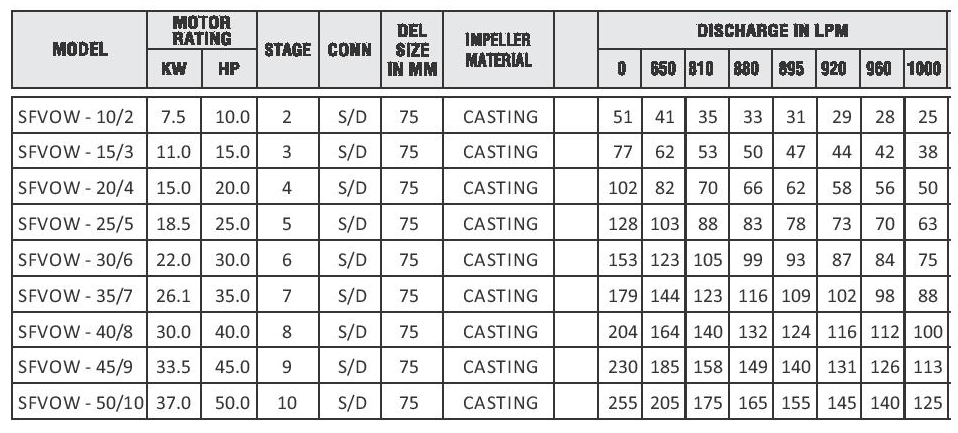

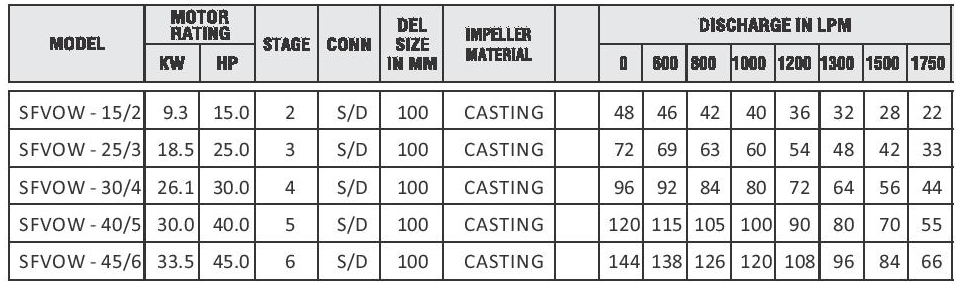

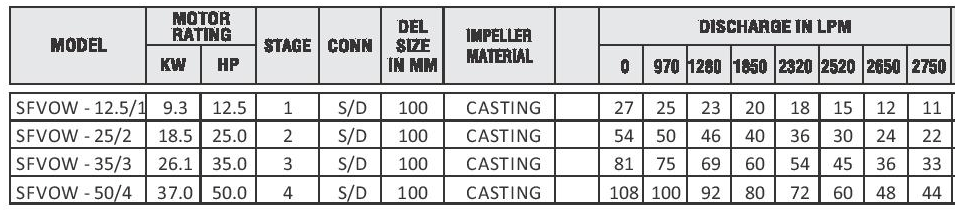

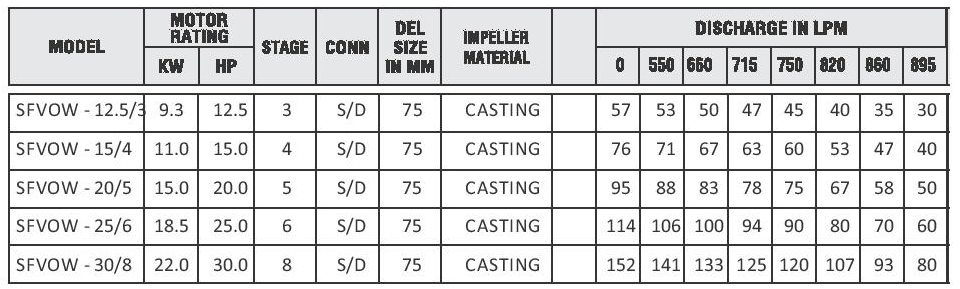

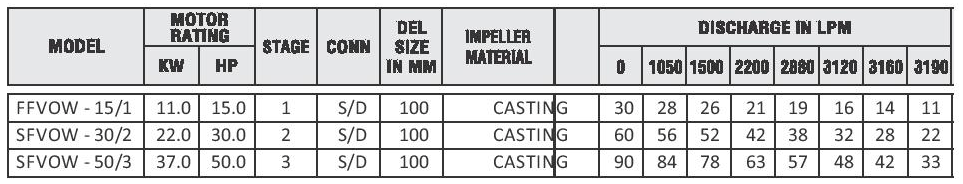

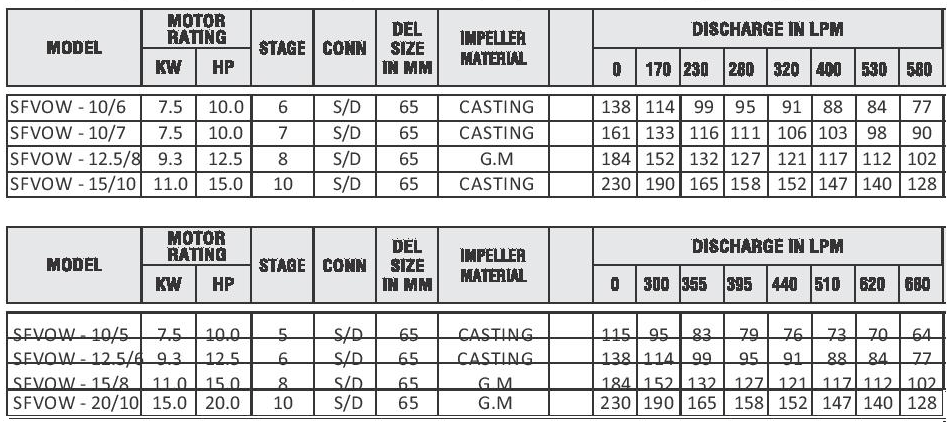

Performance Chart

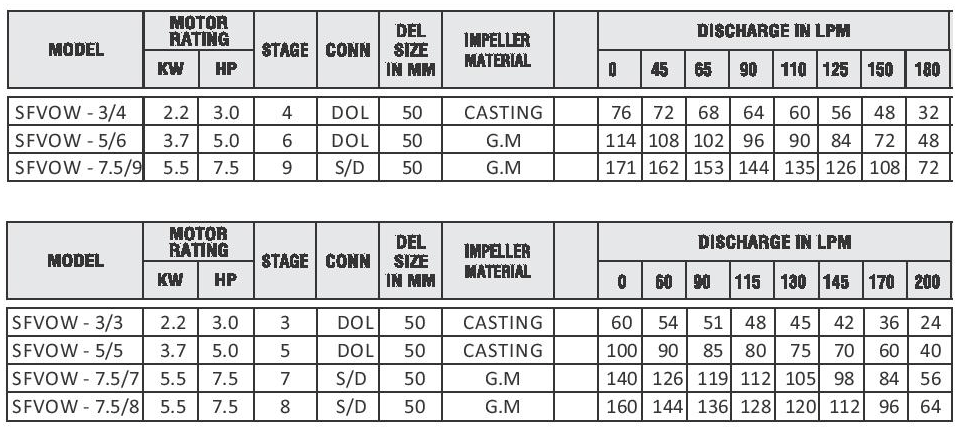

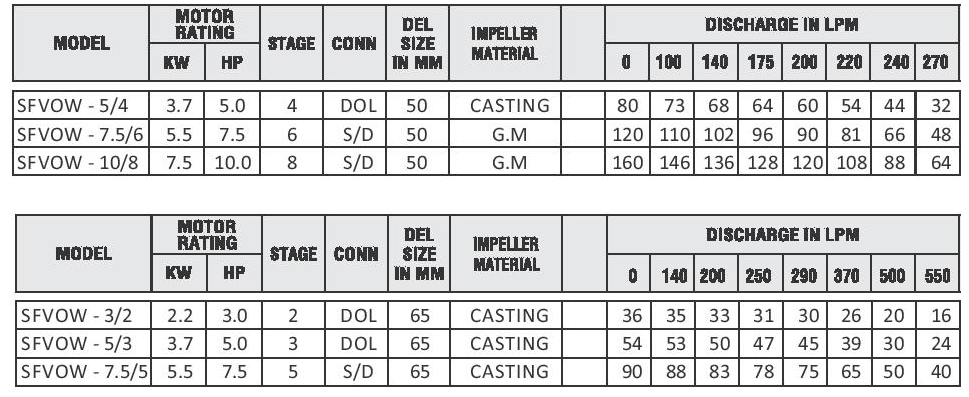

Vertical Openwell Submersible Pumpsets Three Phase 380 To 415 Volts 50 HZ AC Supply
Agriculture Openwell Submersible Pumps
Vertical
Stainless Steel
Product Descriptions
“NEC” Vertical Open-well Submersible pumpsets are easy to install noise free, efficient and require minimum maintenance. A wide range of pumps are available to meet diverse operation requirements.
Applications
Deep or shallow openwell pumping with suction lift
River and canal lift irrigation pumping
Pressure boosting applications.
Public water supply to large residence areas and multi storied apartments
Water supply to commercial establishments like Hotels, Lodges and Hospitals etc
Dewatering of mines
Industrial water supply and transfer
Fountains
Features
Energy efficient motor
Low operating cost
Rigid cast iron motor frame, impeller and volute casing
Three phase water-filled submersible induction motor with easily rewindable stator
Material of Constructions
PARTICULARS
DETAILS
Stator Frame
Cast Iron
Thrust Bearing
Carbon with SS Thrust pad
Journal Bearings
Phosphor Bronze / Carbon / Stainless steel
Diaphragm
Nitrile Rubber
Shaft
Stainless steel shaft with integral sleeve
Strainers
Stainless steel
Discharge casing
Cast Iron
Inlet bracket
Cast Iron
Impeller
Cast Iron / Bronze
Range of Performance
PARTICULARS
DETAILS
Power Range
3.0 to 10.0 HP
Voltage Range
340V- 440V, 50Hz AC Three phase
Speed
2900RPM
Motor Type
Water-filled and water cooled Induction motor
Head
Maximum 60 M
Discharge
Maximum 800 LPM
Liquid temperature
Maximum 33ºC
Operating Pressure
20 bar
Sand Content in Water
Maximum 50 PPM
Sewage Submersible Water Pump
Product Descriptions
Sewage submersible pump are well known for their optimum performing capabilities. NEC sewage water pump has a wide assortment of pumps online to take care of all your sewage handling needs as it comes with a variety of features. The sewage submersible pump takes utmost care of all your untreated sewage and wastewater and they can be used for both industrial and municipal waste. Excess of water at work sites, Basements, or rainwater flooded can be pumped using NEC submersible pump. These pumps are made by using modern technology and are specifically designed to give the best outfit. These pumps are subjected to several quality checks and are provided with the assurance of quality to the customer. The submersible sewage pump is comparatively low and is extremely long-lasting and durable
Features and Benefits
NEC submersible sewage water pumps offer some amazing benefits which include single-phase power, float switch, corrosion protection, efficiently handling of waste and warranty.
NEC single phase pump has a float switch which makes automatic operation possible.
Corrosion leads to damage which ultimately decreases the durability of the pump. NEC sewage water pump comes with a coated CED that has a special characteristic of being anti-rust in nature. It makes sure that the pump is protected from corrosion thereby increasing its longevity.
The efficiency of the pump also increases with the prevention of corrosion and this corrosion leads to significant savings since you won’t have to face the hassle of replacing the pump frequently.
Fibrous solids disrupt the liquid flow in the pump by clogging it and it is the reason why the cutter range is used in NEC pump. Using a highly efficient and reliable mechanism, these water pumps can handle the fibrous solid effectively.
The larger the size of the pump, the greater the flow of water. If you want to save more, you can go for a larger pump. The head range will determine the vertical distance and the discharge range will determine the horizontal distances to which the water can be pumped.
