Stage Pumps

High Speed Self Priming Stage Monoblock Pumps

Stage Pumps High Speed

DMS80/2 Slow speed Self Priming Monoblock Pumps

DMS80/2 Stage Pumps

DMS90/3 Slow speed Self Priming Monoblock Pumps

DMS90/3 Stage Pumps

DMS100/3S Slow speed Self Priming Monoblock Pumps

DMS100/3S Stage Pumps

Product Descriptions

β€œNEC” Single phase Self priming Pumps are side channel centripetal pumps. They are convenient, rugged and reliable pumps for the household, they have proven their performance over many decades. This pump has got good self priming action even with air entrapped.

Applications

  • All applications requiring Self priming action up to 8 meters
  • Overhead storage water- tank filling
  • Car washing
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Gardening and small farm Irrigations
  • Home Pressure Boosting Applications
  • Filter point pumping

Features

  • Rugged single phase TEFC motor with dynamically balanced rotor
  • Suitable for 200 – 240 V, 50 Hz power supply
  • Rigid and accurate cast iron castings
  • Highly wear resistant bronze impeller
  • Carbon Vs Ceramic mechanical seal

Material of Constructions

PARTCULARSDETAILS
Stator FrameCast Iron
BearingsDeep groove ball bearings
Rotor shaftCarbon Steel
Shaft sleeveBronze
CasingCast Iron
Cover domeCast Iron
ImpellerBronze
Sealing ArrangementsCarbon Vs Ceramic Mechanical Seal

Range of performance

PARTICULARSDETAILS
Power Range0.5HP to 2.0 HP
Voltage Range200V – 240V, 50Hz, AC Single phase
Speed1420 RPM
Motor TypeHigh torque Capacitor start motor for DMS80 High torque Capacitor start and Capacitor run motor
HeadMaximum 50 M
DischargeMaximum 59 LPM
Operating PressureMaximum 15 bar

Limits of Use

  • Manometric Suction lift up to : 6m (4m recommended)
  • Medium : Clear Fresh Water only

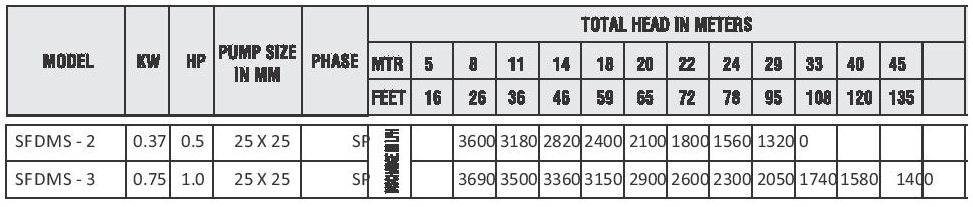

Performance Chart
