Monoblocks

Centrifugal Monoblock Pumpsets

Domestic Self Priming Monoblock

Little Master 0.5HP Single phase Self Priming Monoblock

Product Descriptions

“NEC” Single Phase Self Priming Monoblock Pumps are rugged in construction and efficient. They are manufactured with stringent quality control at all stages to provide higher efficiency and reliability.

Performance Chart

This image has an empty alt attribute; its file name is image-54.png

Applications

  • Water lifting for bunglows and villas.
  • Gardening and lawn sprinklers.
  • Car washing.
  • Pressure boosting.
  • Water circulation.

Features

  • Imported motor protector fitted.
  • High self priming suction.
  • Wide voltage design 180V-240V.
  • Permanent Split capacitor (CSR).
  • Double shielded bearings (ZZ).
  • Non corrosive brass impeller.
  • High quality aluminium extruded body.

Material Of Constructions

  • Pump Body : Fe 200 Cast Iron
  • Motor Body : Extruded Aluminium / Aluminium Die cast (select models)
  • Impeller : Forged Brass
  • Shaft : SS 410 / EN 8
  • Motor : Single phase 230V – 50 Hz CSR, TEFC motor with Thermal Overload Protection
  • Insulation : Class B
  • Bearing : 6202 ZZ Nisiki
  • Stamping : CRCA – LC Steel
  • Winding : Enamelled copper wire winding

Range of Performance

  • Flow Rate : Upto 3000 LPH
  • Head Range : 6m to 40m

Limits of Use

  • Manometric Suction lift up to : 6m (4m recommended)
  • Medium : Clear Fresh Water only

Monoblock Pumpsets

Centrifugal Monoblock Pumpsets

Mini Monoblock 0.5HP Single Phase

This image has an empty alt attribute; its file name is image-36.png

Product Descriptons

“NEC” SINGLE PHASE MINI-MONOBLOCK Pumps are rugged in construction and efficient. They are manufactured with stringent quality control at all stages to provide higher efficiency and reliability.

Performance Chart

Applications

  • Water lifting for bunglows and villas.
  • Gardening and lawn sprinklers.
  • Car washing.
  • Pressure boosting.
  • Water circulation.

Features

  • Imported motor protector fitted.
  • High self priming suction.
  • Wide voltage design 180V-240V.
  • Permanent Split capacitor (CSR).
  • Double shielded bearings (ZZ).
  • Non corrosive brass impeller.
  • High quality aluminium extruded body.

Material of constructions

  • Pump Body : Fe 200 Cast Iron
  • Motor Body : Extruded Aluminium / Aluminium Die cast (select models)
  • Impeller : Forged Brass
  • Shaft : SS 410 / EN 8
  • Motor : Single phase 230V – 50 Hz CSR, TEFC motor with Thermal Overload Protection
  • Insulation : Class B
  • Bearing : 6202 ZZ Nisiki
  • Stamping : CRCA – LC Steel
  • Winding : Enamelled copper wire winding

Range of Performance

  • Flow Rate : Upto 3000 LPH
  • Head Range : 6m to 40m

Limits of use

  • Manometric Suction lift up to : 6m (4m recommended)
  • Medium : Clear Fresh Water only

Monoblock Pumpsets

Self Priming Monoblocks

DMS80 0.5HP Single Phase Slow speed Self Priming Monoblock

Product Descriptions

“NEC” Single phase Self priming Pumps are side channel centripetal pumps. They are convenient, rugged and reliable pumps for the household, they have proven their performance over many decades. This pump has got good self priming action even with air entrapped.

Performance Chart

Applications

  • All applications requiring Self priming action up to 8 meters
  • Overhead storage water- tank filling
  • Car washing
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Gardening and small farm Irrigations
  • Home Pressure Boosting Applications
  • Filter point pumping

Features

  • Rugged single phase TEFC motor with dynamically balanced rotor
  • Suitable for 200 – 240 V, 50 Hz power supply
  • Rigid and accurate cast iron castings
  • Highly wear resistant bronze impeller
  • Carbon Vs Ceramic mechanical seal

Material of Constructions

PARTCULARSDETAILS
Stator FrameCast Iron
BearingsDeep groove ball bearings
Rotor shaftCarbon Steel
Shaft sleeveBronze
CasingCast Iron
Cover domeCast Iron
ImpellerBronze
Sealing ArrangementsCarbon Vs Ceramic Mechanical Seal

Range of performance

PARTICULARSDETAILS
Power Range0.5HP to 1.0 HP
Voltage Range200V – 240V, 50Hz, AC Single phase
Speed1420 RPM
Motor TypeHigh torque Capacitor start motor for DMS80 High torque Capacitor start and Capacitor runmotor
HeadMaximum 36 M
DischargeMaximum 59 LPM
Operating PressureMaximum 15 bar

Limits of Use

  • Manometric Suction lift up to : 6m (4m recommended)
  • Medium : Clear Fresh Water only

Monoblock Pumpsets

Self Priming Monoblock Pumps

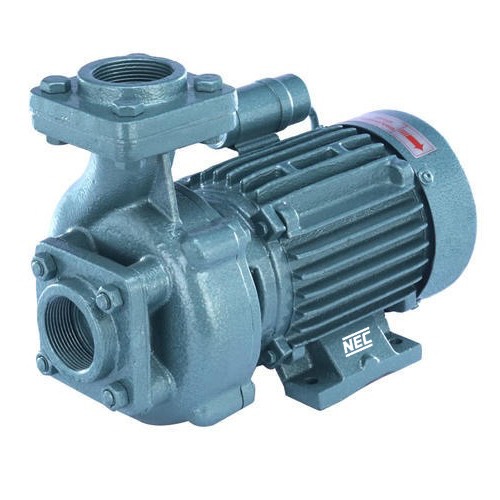

DMS90 1.0HP Single Phase Slow speed Self Priming Monoblock

This image has an empty alt attribute; its file name is image-48.png

Product Descriptions

“NEC” Single phase Self priming Pumps are side channel centripetal pumps. They are convenient, rugged and reliable pumps for the household, they have proven their performance over many decades. This pump has got good self priming action even with air entrapped.

Performance Chart

Applications

  • All applications requiring Self priming action up to 8 meters
  • Overhead storage water- tank filling
  • Car washing
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Gardening and small farm Irrigations
  • Home Pressure Boosting Applications
  • Filter point pumping

Features

  • Rugged single phase TEFC motor with dynamically balanced rotor
  • Suitable for 200 – 240 V, 50 Hz power supply
  • Rigid and accurate cast iron castings
  • Highly wear resistant bronze impeller
  • Carbon Vs Ceramic mechanical seal

Material of Construction

PARTCULARSDETAILS
Stator FrameCast Iron
BearingsDeep groove ball bearings
Rotor shaftCarbon Steel
Shaft sleeveBronze
CasingCast Iron
Cover domeCast Iron
ImpellerBronze
Sealing ArrangementsCarbon Vs Ceramic Mechanical seal.

Range of Performance

PARTICULARSDETAILS
Power Range0.5HP to 1.0 HP
Voltage Range200V – 240V, 50Hz, AC Single phase
Speed1420RPM
Motor TypeHigh torque Capacitor start motor for DMS90          High torque Capacitor start and Capacitor run motor
HeadMaximum 36M
DischargeMaximum 59LPM
Operating PressureMaximum 15bar

Limits of use

  • Manometric Suction lift up to : 6m (4m recommended)
  • Medium : Clear Fresh Water only

Monoblock Pumpsets

Single Phase Monoblock Centrifugal Pumpsets

Rx60 Monoblock 0.5HP Single Phase 20Mtrs

Product Descriptions

“NEC” Single phase Centrifugal Monoblock Pumpsets are Convenient, rugged and efficient these monoblocks are ideal where the water requirement is fairly high.

Applications

  • Overhead storage water- tank filling
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Gardening and small farm irrigations
  • Home Pressure boosting Applications
  • Portable small – farm irrigation

Features

  • High efficiency hence lower power consumption than other types of small pumps.
  • When running hours are high, savings in power can be significant.
  • Relatively higher discharge
  • Higher heads achievable with models featuring stainless steel impellers
  • In-built thermal overload protector

Material of Constructions

PARTCULARSDETAILS
Stator FrameCast Iron
BearingsDeep groove ball bearings
Rotor shaftStainless 410Steel
CasingCast Iron
Cover domeCast Iron
ImpellerCast iron , Nitriyel, Bronze (Optional)
Sealing ArrangementsCarbon Vs Ceramic Mechanical Seal
Electrical WindingCopper
StampingCRNO , M47 , LC Low carbon
RotorPressured Alu. Diecast , Copper (Option)

Range of Performance

PARTICULARSDETAILS
Power Range0.5HP
Voltage Range200V – 240V, 50Hz, AC Single phase
Speed2900 rpm
Motor TypeCapacitor run motor TEFC type
HeadMaximum 20 M
DischargeMaximum 65 LPM
Operating PressureMaximum 5 bar
SuctionMaximum 25mm
DeliveryMaximum 25mm

Limits of Use

  • Manometric Suction lift up to : 6m (4m recommended)
  • Medium : Clear Fresh Water only

Monoblock Pumpsets

Rx80 Monoblock 0.5HP Single Phase 25Mtrs

This image has an empty alt attribute; its file name is image-37-1024x801.png

0.5HP Monoblock High Head

Product Descriptions

“NEC” Single phase Centrifugal Monoblock Pumpsets are Convenient, rugged and efficient these monoblocks are ideal where the water requirement is fairly high.

Applications

  • Overhead storage water- tank filling
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Gardening and small farm irrigations
  • Home Pressure boosting Applications
  • Portable small – farm irrigation

Features

  • High efficiency hence lower power consumption than other types of small pumps.
  • When running hours are high, savings in power can be significant.
  • Relatively higher discharge
  • Higher heads achievable with models featuring stainless steel impellers
  • In-built thermal overload protector

Material of Constructions

PARTCULARSDETAILS
Stator FrameCast Iron
BearingsDeep groove ball bearings
Rotor shaftStainless 410Steel
CasingCast Iron
Cover domeCast Iron
ImpellerCast iron , Nitriyel, Bronze (Optional)
Sealing ArrangementsCarbon Vs Ceramic Mechanical Seal
Electrical WindingCopper
StampingCRNO , M47 , LC Low carbon
RotorPressured Alu. Diecast , Copper (Option)

Range of Performance

PARTICULARSDETAILS
Power Range0.5HP
Voltage Range200V – 240V, 50Hz, AC Single phase
Speed2900 rpm
Motor TypeCapacitor run motor TEFC type
HeadMaximum 25 M
DischargeMaximum 60 LPM
Operating PressureMaximum 5 bar
SuctionMaximum 25mm
DeliveryMaximum 25mm

Limits of Use

  • Manometric Suction lift up to : 6m (4m recommended)
  • Medium : Clear Fresh Water only

Monoblock Pumpsets

0.5HP Single Phase Monoblock Low Head

Centrifugal Low Head Monoblocks

Product Descriptions

“NEC” Single phase Centrifugal Monoblock Pumpsets are Convenient, rugged and efficient these monoblocks are ideal where the water requirement is fairly high.

Applications

  • Overhead storage water- tank filling
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Gardening and small farm irrigations
  • Home Pressure boosting Applications
  • Portable small – farm irrigation

Features

  • High efficiency hence lower power consumption than other types of small pumps.
  • When running hours are high, savings in power can be significant.
  • Relatively higher discharge
  • Higher heads achievable with models featuring stainless steel impellers
  • In-built thermal overload protector

Material of Constructions

PARTCULARSDETAILS
Stator FrameCast Iron
BearingsDeep groove ball bearings
Rotor shaftStainless 410Steel
CasingCast Iron
Cover domeCast Iron
ImpellerCast iron , Nitriyel, Bronze (Optional)
Sealing ArrangementsCarbon Vs Ceramic Mechanical Seal
Electrical WindingCopper
StampingCRNO , M47 , LC Low carbon
RotorPressured Alu. Diecast , Copper (Option)

Range of Performance

PARTICULARSDETAILS
Power Range0.5HP,1HP,1.5HP,2HP
Voltage Range200V – 240V, 50Hz, AC Single phase
Voltage Range400V – 440V, 50Hz, AC Three phase
Speed2900 rpm
Motor TypeCapacitor run motor TEFC type
HeadMaximum 40 M
DischargeMaximum 200 LPM
Operating PressureMaximum 10 bar
SuctionMaximum 63mm
DeliveryMaximum 63mm

Limits of Use

  • Manometric Suction lift up to : 6m (4m recommended)
  • Medium : Clear Fresh Water only

Monoblock Pumpsets

Centrifugal Monoblock Pumpsets

Centrifugal High Discharge Monoblocks

Product Descriptions

“NEC” Single phase Centrifugal Monoblock Pumpsets are Convenient, rugged and efficient these monoblocks are ideal where the water requirement is fairly high.

Applications

  • Overhead storage water- tank filling
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Gardening and small farm irrigations
  • Home Pressure boosting Applications
  • Portable small – farm irrigation

Features

  • High efficiency hence lower power consumption than other types of small pumps.
  • When running hours are high, savings in power can be significant.
  • Relatively higher discharge
  • Higher heads achievable with models featuring stainless steel impellers
  • In-built thermal overload protector

Material of Constructions

PARTCULARSDETAILS
Stator FrameCast Iron
BearingsDeep groove ball bearings
Rotor shaftStainless 410Steel
CasingCast Iron
Cover domeCast Iron
ImpellerCast iron , Nitriyel, Bronze (Optional)
Sealing ArrangementsCarbon Vs Ceramic Mechanical Seal
Electrical WindingCopper
StampingCRNO , M47 , LC Low carbon
RotorPressured Alu. Diecast , Copper (Option)

Range of Performance

PARTICULARSDETAILS
Power Range0.5HP,1HP,1.5HP,2HP
Voltage Range200V – 240V, 50Hz, AC Single phase
Voltage Range400V – 440V, 50Hz, AC Three phase
Speed2900 rpm
Motor TypeCapacitor run motor TEFC type
HeadMaximum 40 M
DischargeMaximum 200 LPM
Operating PressureMaximum 10 bar
SuctionMaximum 63mm
DeliveryMaximum 63mm

Limits of Use

  • Manometric Suction lift up to : 6m (4m recommended)
  • Medium : Clear Fresh Water only

Monoblock Pumpsets

Centrifugal Monoblock Pumpsets

Centrifugal High Head Monoblocks

Product Descriptions

“NEC” Single phase Centrifugal Monoblock Pumpsets are Convenient, rugged and efficient these monoblocks are ideal where the water requirement is fairly high.

Performance Chart

Applications

  • Overhead storage water- tank filling
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Gardening and small farm irrigations
  • Home Pressure boosting Applications
  • Portable small – farm irrigation

Features

  • High efficiency hence lower power consumption than other types of small pumps.
  • When running hours are high, savings in power can be significant.
  • Relatively higher discharge
  • Higher heads achievable with models featuring stainless steel impellers
  • In-built thermal overload protector

Material Of Constructions

PARTCULARSDETAILS
Stator FrameCast Iron
BearingsDeep groove ball bearings
Rotor shaftStainless 410Steel
CasingCast Iron
Cover domeCast Iron
ImpellerCast iron , Nitriyel, Bronze (Optional)
Sealing ArrangementsCarbon Vs Ceramic Mechanical Seal
Electrical WindingCopper
StampingCRNO , M47 , LC Low carbon
RotorPressured Alu. Diecast , Copper (Option)

Range of Performance

PARTICULARSDETAILS
Power Range0.5HP,1HP,1.5HP,2HP
Voltage Range200V – 240V, 50Hz, AC Single phase
Voltage Range400V – 440V, 50Hz, AC Three phase
Speed2900 rpm
Motor TypeCapacitor run motor TEFC type
HeadMaximum 40 M
DischargeMaximum 200 LPM
Operating PressureMaximum 10 bar
SuctionMaximum 63mm
DeliveryMaximum 63mm

Limits of use

  • Manometric Suction lift up to : 6m (4m recommended)
  • Medium : Clear Fresh Water only

Monoblock Pumpsets

Centrifugal Monoblock Pumpsets

This image has an empty alt attribute; its file name is image-44.png

Low Head High Discharge Centrifugal Monoblock

Product Descriptions

“NEC” Single phase Centrifugal Monoblock Pumpsets are Convenient, rugged and efficient these monoblocks are ideal where the water requirement is fairly high.

Performance Chart

Applications

  • Overhead storage water- tank filling
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Gardening and small farm irrigations
  • Home Pressure boosting Applications
  • Portable small – farm irrigation

Features

  • High efficiency hence lower power consumption than other types of small pumps.
  • When running hours are high, savings in power can be significant.
  • Relatively higher discharge
  • Higher heads achievable with models featuring stainless steel impellers
  • In-built thermal overload protector

Material of Constructions

PARTCULARSDETAILS
Stator FrameCast Iron
BearingsDeep groove ball bearings
Rotor shaftStainless 410Steel
CasingCast Iron
Cover domeCast Iron
ImpellerCast iron , Nitriyel, Bronze (Optional)
Sealing ArrangementsCarbon Vs Ceramic Mechanical Seal
Electrical WindingCopper
StampingCRNO , M47 , LC Low carbon
RotorPressured Alu. Diecast , Copper (Option)

Range of Performance

PARTICULARSDETAILS
Power Range0.5HP,1HP,1.5HP,2HP
Voltage Range200V – 240V, 50Hz, AC Single phase
Voltage Range400V – 440V, 50Hz, AC Three phase
Speed2900 rpm
Motor TypeCapacitor run motor TEFC type
HeadMaximum 40 M
DischargeMaximum 200 LPM
Operating PressureMaximum 10 bar
SuctionMaximum 63mm
DeliveryMaximum 63mm

Limits of Use

  • Manometric Suction lift up to : 6m (4m recommended)
  • Medium : Clear Fresh Water only

Monoblock Pumpsets

Centrifugal Monoblock Pumpsets

This image has an empty alt attribute; its file name is image-45.png

High Head High Discharge Centrifugal Monoblock

Product Descriptions

“NEC” Single phase Centrifugal Monoblock Pumpsets are Convenient, rugged and efficient these monoblocks are ideal where the water requirement is fairly high.

Performance Chart

Applications

  • Overhead storage water- tank filling
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Gardening and small farm irrigations
  • Home Pressure boosting Applications
  • Portable small – farm irrigation

Features

  • High efficiency hence lower power consumption than other types of small pumps.
  • When running hours are high, savings in power can be significant.
  • Relatively higher discharge
  • Higher heads achievable with models featuring stainless steel impellers
  • In-built thermal overload protector

Material of Constructions

PARTCULARSDETAILS
Stator FrameCast Iron
BearingsDeep groove ball bearings
Rotor shaftStainless 410Steel
CasingCast Iron
Cover domeCast Iron
ImpellerCast iron , Nitriyel, Bronze (Optional)
Sealing ArrangementsCarbon Vs Ceramic Mechanical Seal
Electrical WindingCopper
StampingCRNO , M47 , LC Low carbon
RotorPressured Alu. Diecast , Copper (Option)

Range of Performance

PARTICULARSDETAILS
Power Range0.5HP,1HP,1.5HP,2HP
Voltage Range200V – 240V, 50Hz, AC Single phase
Voltage Range400V – 440V, 50Hz, AC Three phase
Speed2900 rpm
Motor TypeCapacitor run motor TEFC type
HeadMaximum 40 M
DischargeMaximum 200 LPM
Operating PressureMaximum 10 bar
SuctionMaximum 63mm
DeliveryMaximum 63mm

Limits of Use

  • Manometric Suction lift up to : 6m (4m recommended)
  • Medium : Clear Fresh Water only

Monoblock Pumpsets

Centrifugal Agricultural Monoblock Pumpsets

Centrifugal Monoblock Pumpsets Agriculture

Edit image

Product Descriptions

“NEC” Three Phase Agricultural Centrifugal Monoblock pumps are rugged, reliable and are built to withstand tough conditions like low voltages and high suction lifts. A very wide range of monoblocks to suit a variety of operating points are available.

Performance Chart

Applications

  • Deep or shallow open well pumping with suction lift
  • River and canal lift irrigation pumping
  • Sprinkler and drip Irrigation systems
  • Filter point pumping
  • Industrial water supply and transfer
  • Cooling water circulating systems
  • Pressure boosting systems

Features

PARTICULARSDETAILS
Motor BodyCast Iron (FG 200)
BearingsHeavy Duty Deep groove ball bearings
Rotor shaftCarbon steel shaft (Optional – SS)
Shaft SleeveStainless Steel (AISI 410)
Cooling fanAluminum / Cast iron (FG 200)
Water cutting ringNitrile Rubber
Cooling fan coverCast Iron (FG 200)

Material of Constructions

PARTICULARSDETAILS
Motor BodyCast Iron (FG 200)
BearingsHeavy Duty Deep groove ball bearings
Rotor shaftCarbon steel shaft (Optional – SS)
Shaft SleeveStainless Steel (AISI 410)
Cooling fanAluminum / Cast iron (FG 200)
Water cutting ringNitrile Rubber
Cooling fan coverCast Iron (FG 200)
Eye boltsForged steel
CasingCast Iron (FG 200)
YokeCast Iron (FG 200)
ImpellerCast Iron (FG 200) (Optional – Bronze)
Sealing ArrangementsPacking rope with Gland
Optional : Packing rope with Gland & Double lip seal
Optional : Mechanical seal

Range of Performance

PARTICULARSDETAILS
Power Range1.5 to 30.0 HP
Voltage Range340V- 440V, 50Hz, Three phase AC Power supply
Class of Insulation‘A’ Class – 1.5 HP to 30 HP B’ Class – 3 HP to 10 HP
Speed (rpm)2900
Motor TypeSquirrel Cage Induction motor (TEFC Type) in Rugged Cast iron construction
HeadMaximum  95 m
DischargeMaximum  2600 lpm
Liquid temperatureMaximum  33ºC
Operating PressureMaximum 20 bar
Optional (Sealing)Carbon Vs Ceramic Mechanical seal ,High Temp Seal provided on  request

Limits of Use

  • Manometric Suction lift up to : 6m (4m recommended)
  • Medium : Clear Fresh Water only

Jet Pumps

Borewell Jet Monoblock Pumpsets

Borewell Jet monoblock Pumpset TwinType

Product Description

“NEC” Jet Monoblocks are capable of pumping water from bore wells and open-wells and offer a economical alternative to Submersible Pumps to take water from the deepwell and deepBorewell. They are special available models in both “Side-suction” and “Bottom- suction” models.

Performance chart

This image has an empty alt attribute; its file name is image-62.png

Applications

  • Pumping water from well / bores where suction depth exceeds 30 feet
  • Operates up to 250 feet of water level .
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • In case of collapsible bore, Jet pump will be better option since pump set is erected outside it will not stuck in the bore

Features

  • Can be easily erected over the borewell or erected inside the building away from the borewell for improved security
  • Servicing can be done with ease at lower cost as the monoblock is accessible at the surface
  • When used in openwells the monoblock is protected from variation of water level as it can be fixed on ground level, so no need to change the position of the pump

Material of Constructions

PARTICULARSDETAILS
FrameCast Iron
ShaftSS 410
CasingCast Iron
Cover domeCast Iron
Jet Unit AssemblyBronze
ImpellerNoryl , SS and Gunmetal
Mechanical SealCeramic & Graphite

Jet Pumps

Borewell Jet Monoblock Pump Vertical Aluminium Body

Product Description

“NEC” Jet Monoblocks are capable of pumping water from bore wells and open-wells and offer a economical alternative to Submersible Pumps to take water from the deepwell and deepBorewell. They are special available models in both “Side-suction” and “Bottom- suction” models.

Performance Chart

Applications

  • Pumping water from well / bores where suction depth exceeds 30 feet
  • Operates up to 250 feet of water level .
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • In case of collapsible bore, Jet pump will be better option since pump set is erected outside it will not stuck in the bore.

Features

  • Can be easily erected over the borewell or erected inside the building away from the borewell for improved security
  • Servicing can be done with ease at lower cost as the monoblock is accessible at the surface
  • When used in openwells the monoblock is protected from variation of water level as it can be fixed on ground level, so no need to change the position of the pump

Material of Constructions

PARTICULARSDETAILS
FrameCast Iron
ShaftSS 410
CasingCast Iron
Cover domeCast Iron
Jet Unit AssemblyBronze
ImpellerNoryl , SS and Gun metal
Mechanical SealCeramic & Graphite

Jet Pumps

Borewell Jet Monoblock Pump Vertical Two Stages Aluminium Body

Product Descriptions

“NEC” Jet Monoblocks are capable of pumping water from bore wells and open-wells and offer a economical alternative to Submersible Pumps to take water from the deepwell and deepBorewell. They are special available models in both “Side-suction” and “Bottom- suction” models.

Performance Chart

Applications

  • Pumping water from well / bores where suction depth exceeds 30 feet
  • Operates up to 250 feet of water level .
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • In case of collapsible bore, Jet pump will be better option since pump set is erected outside it will not stuck in the bore.

Features

  • Can be easily erected over the borewell or erected inside the building away from the borewell for improved security
  • Servicing can be done with ease at lower cost as the monoblock is accessible at the surface
  • When used in openwells the monoblock is protected from variation of water level as it can be fixed on ground level, so no need to change the position of the pump

Material of Constructions

PARTICULARSDETAILS
FrameCast Iron
ShaftSS 410
CasingCast Iron
Cover domeCast Iron
Jet Unit AssemblyBronze
ImpellerNoryl / SS
StageTwo
Mechanical SealCeramic & Graphite

Jet Pumps

Borewell Jet Monoblock Pump Vertical MultiStages Aluminium Body

Product Description

“NEC” Jet Monoblocks are capable of pumping water from bore wells and open-wells and offer a economical alternative to Submersible Pumps to take water from the deepwell and deepBorewell. They are special available models in both “Side-suction” and “Bottom- suction” models.

Performance Chart

This image has an empty alt attribute; its file name is image-66.png

Applications

  • Pumping water from well / bores where suction depth exceeds 30 feet
  • Operates up to 250 feet of water level .
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • In case of collapsible bore, Jet pump will be better option since pump set is erected outside it will not stuck in the bore.

Features

  • Can be easily erected over the borewell or erected inside the building away from the borewell for improved security
  • Servicing can be done with ease at lower cost as the monoblock is accessible at the surface
  • When used in openwells the monoblock is protected from variation of water level as it can be fixed on ground level, so no need to change the position of the pump

Material of Constructions

PARTICULARSDETAILS
FrameCast Iron
ShaftSS 410
CasingCast Iron
Cover domeCast Iron
Jet Unit AssemblyBronze
ImpellerNoryl / SS
StageMulti
Mechanical SealCeramic & Graphite

Jet Pumps

Borewell Jet Monoblock Pump Vertical MultiStages Aluminium Body

Product Description

“NEC” Jet Monoblocks are capable of pumping water from bore wells and open-wells and offer a economical alternative to Submersible Pumps to take water from the deepwell and deepBorewell. They are special available models in both “Side-suction” and “Bottom- suction” models.

Performance Chart

Applications

  • Pumping water from well / bores where suction depth exceeds 30 feet
  • Operates up to 250 feet of water level .
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • Water supply to commercial establishments like Hotels, Lodges and Hospitals
  • In case of collapsible bore, Jet pump will be better option since pump set is erected outside it will not stuck in the bore.

Features

  • Can be easily erected over the borewell or erected inside the building away from the borewell for improved security
  • Servicing can be done with ease at lower cost as the monoblock is accessible at the surface
  • When used in openwells the monoblock is protected from variation of water level as it can be fixed on ground level, so no need to change the position of the pump

Material of Constructions

PARTICULARSDETAILS
FrameCast Iron
ShaftSS 410
CasingCast Iron
Cover domeCast Iron
Jet Unit AssemblyBronze
ImpellerNoryl / SS
StageMulti
Mechanical SealCeramic & Graphite

Jet Pumps

Borewell Jet Monoblock Pumps Horizontal CI Body

Product Descriptions

“NEC” Jet Monoblocks are capable of pumping water from bore wells and open-wells and offer a economical alternative to Submersible Pumps to take water from the deepwell and deepBorewell. They are special available models in both “Side-suction” and “Bottom- suction” models.

Performance Chart
